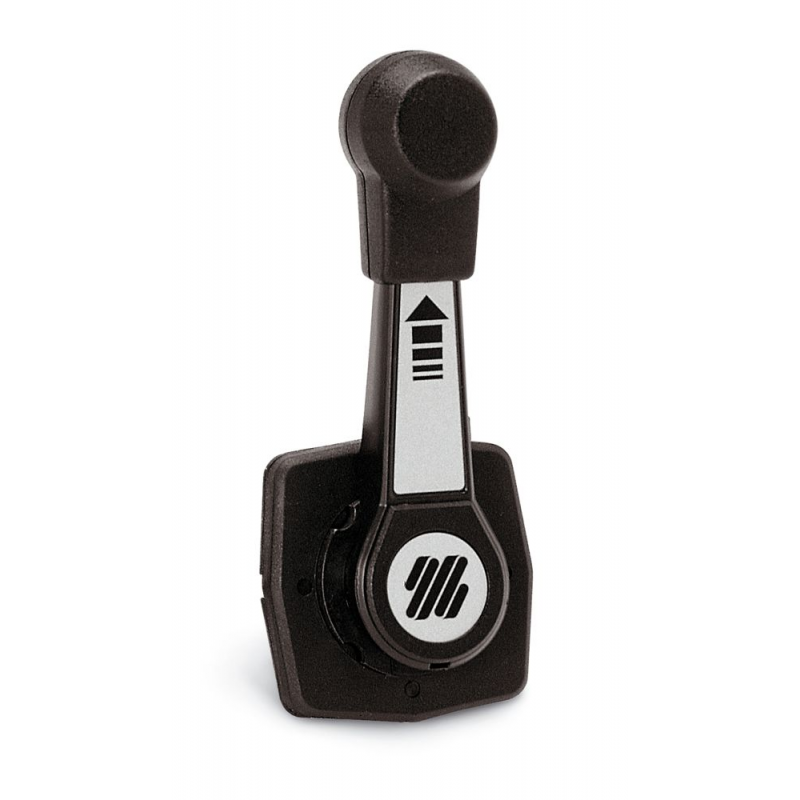

CONTROL BOX B85

Top and side mount dual action controls With lever lock device, hand lever withoutjut for use on sailing bofor throttle and gearbox. Suitable for any kind of boat with outboard motor, inboard, and stern-drive, with hydraulicgearbox. Mounts port or starboard, horizontally or vertically. The hub and thelever are made in die-cast aluminium and varnished. Built-in friction drag toprevent throttle creep. Warm-up are done by pulling out the hand levers. Withsafety switch X12 (optional), start can be done only with gearbox in the neutralposition. The model B184 has in the hand levers a trim switch to adjust tilt ofoutboard and stern-drive. Suitable for all type of control cables C2-C8-C14 e Mach0-Mach14. C5-C16 and Mach 5cables need adapter kit K35, art. 4242069.
